The Essential Guide to Designing for 3D Printing
You’ve got a killer idea, a sleek CAD model, and a craving to see it in the printed. But before you hit "print," there’s a bit of a reality check: 3D printers don’t just print objects; they print layers.
To help you get the best results from our shop, we’ve put together this quick cheat sheet on the core design principles that separate a "failed spaghetti mess" from a "masterpiece."

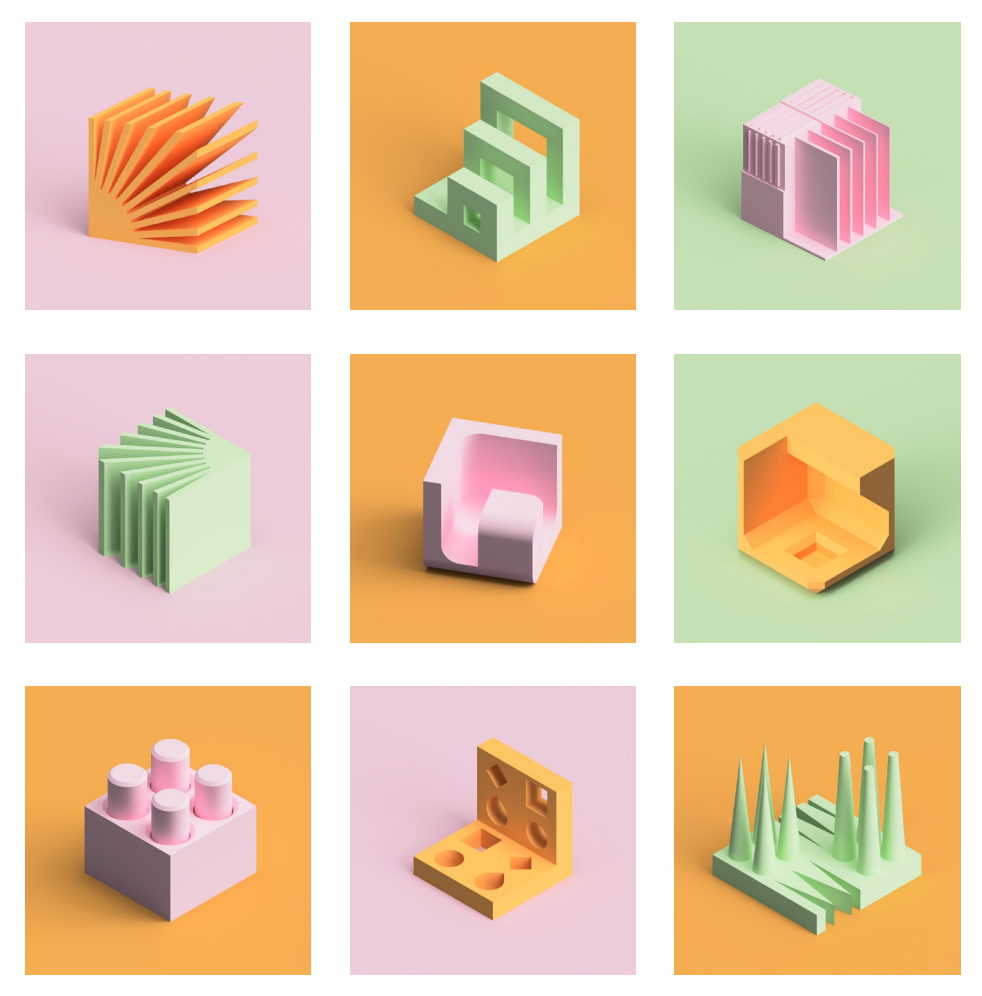

1. Overhangs: Respect the 45° Rule
3D printers can’t print on thin air. Every new layer needs some support from the one below it.
-
The Rule: Angles up to 45 degrees usually print perfectly.
-
The Risk: Anything steeper may require "supports," which can leave marks on your model when removed.
2. Bridging: Crossing the Chasm
Bridging is when the printer pulls a "tightrope act," extruding plastic between two points without support underneath.
-
The Tip: Keep bridges short (under 10mm-15mm for best results). Long bridges tend to sag, looking more like a wet noodle than a straight line.
3. Minimum Features: Don’t Go Too Small
Your design might look great zoomed in 1000% on your screen, but the physical nozzle has limits.
-
Walls: Aim for a minimum wall thickness of 0.8mm to 1.2mm.
-
Details: Engraved text or tiny bumps should be at least 0.5mm wide and deep to stay legible.
4. Orientation: Strength and Aesthetics
Think of 3D prints like wood; they have a "grain" (the layer lines).
-
Strength: Parts are weakest along the layer lines. If your part needs to take a load, orient it so the force doesn't pull the layers apart.
-
Surface: The top surface always looks the cleanest. Choose your "show side" carefully!
5. Fillets vs. Chamfers
These are the unsung heroes of 3D design.
-
Fillets (Rounded edges): Great for distributing stress and making parts feel "premium" in the hand.
-
Chamfers (Angled edges): The 3D printing MVP. Use a 45-degree chamfer on the bottom of your model to prevent "elephant’s foot" (where the first layer squishes out) and ensure a clean print without supports.
6. Tolerance: Give It Some Space
If you’re designing two parts that need to fit together (like a lid or a gear), you cannot make them the exact same size.
-
The Gap: Leave a "tolerance" of about 0.2mm to 0.5mm between moving parts. Without this, the heat from the plastic will cause them to fuse into one solid (and very frustrating) block.
7. Holes: Mind the Geometry
Vertical holes print great. Horizontal holes? Not so much.
-
The Fix: Because the top of a horizontal hole is essentially an overhang, it can come out slightly flattened. If precision matters, design horizontal holes as "teardrop" shapes or plan to drill them out post-print.
8. Sharp Points & Bed Adhesion
The first layer is the most important.
-
The Problem: Sharp, narrow points on the bottom of a print have a nasty habit of peeling off the build plate mid-print.
-
The Solution: Round off sharp corners at the base of your model to keep it stuck firm from start to finish.
Ready to bring your design to life? Upload your files to our shop today! If you’re unsure about your geometry, shoot us a message, we’re always happy to give your STL a quick "sanity check" before we fire up the machines.
References:
- https://makerworld.com/en/models/2655138-3d-printing-design-principles-model-set#profileId-2935885
